Option

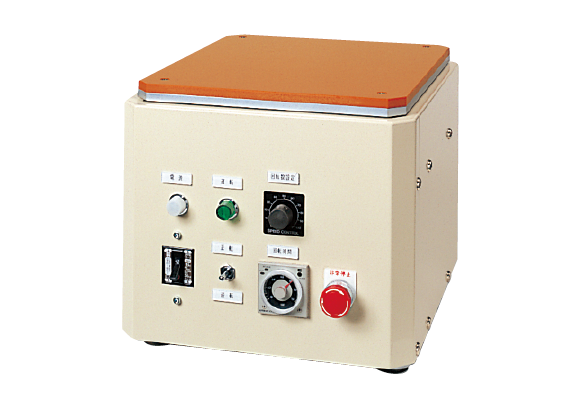

Rotary Type Vibratory Parts Aligner
MVV-ⅠRR
Rotary motion Parts Aligner is used for fastening screws, or setting circular parts with correct orientation.
| Model | MVV-ⅠRR |
|---|---|
| Vibration | Horizontal rotary motion |
| Vibrating table dimensions | - |
| Dimension | W300×D350×H260mm |
| Weight approx. | ～35kg |
| Power requirement | 100VA, AC100V, 50/60Hz |

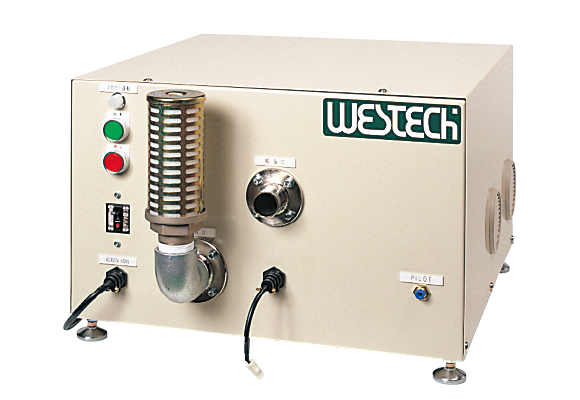

Vacuum Unit
MVAC-ⅠB
High volume blower is used to create vacuum. Hundred and thousand parts, depending on the size and weight, can be processed at once.
| Model | MVAC-ⅠB |
|---|---|
| Dimension | W510×D630×H350mm |
| Weight | 45.5kg |
| Power | 500VA, AC100V, 50/60Hz |
| Factory Air | 0.3MPa |

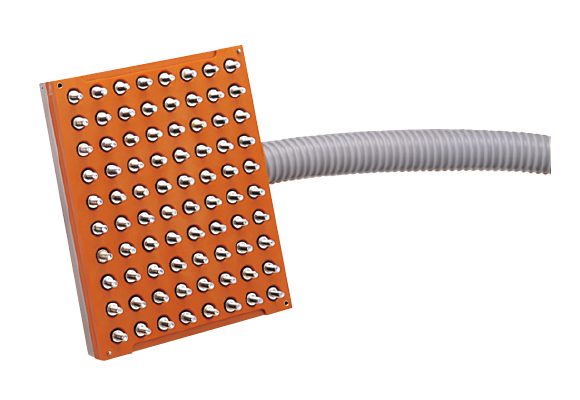

Vacuum Head
The Vacuum Head is attached to the Vacuum unit, used to handle and transport parts

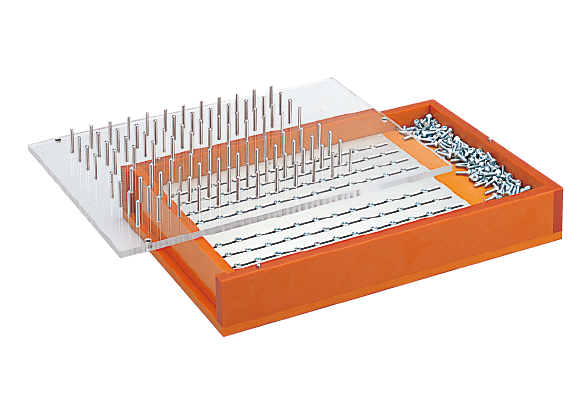

Screw Alignment Pallet Tools
Pallet tools used to align screw type parts manually.

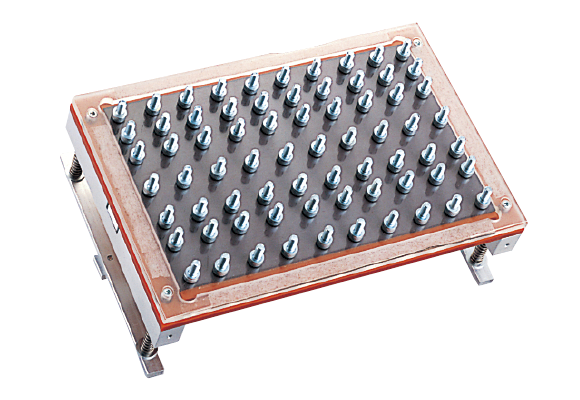

Magnet Chuck Unit
Magnetic Chuck used to pick up parts from the alignment pallet.
